Overview

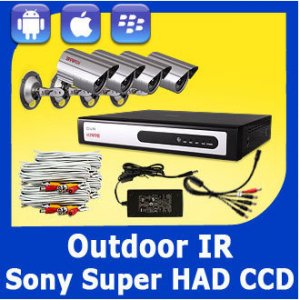

The kit DS-4144 includes a 4 CH H.264 standalone DVR and 4 night vision security cameras providing everything you need to have your surveillance system up and running in your home or business quickly and easily.
The DVR D7824HT is a 4 channel, fully integrated, real time, and hardware based standalone digital video recorder. With network access, motion detection, VGA video output, and USB2.0 backup, this DVR is perfect for the home or small business. The DVR also features the most updated 3G mobile live! Preview via mobile phone.
The cameras included in the kit are 1/4" color Sony Super HAD CCD IR night vision Outdoor & indoor cameras. All cables and power supplies are included.
DVR Features
4 CH H.264 Surveillance DVR
NO HD Installed
H.264 Hardware Compression
Video Input / Output: BNC 4/ BNC 1
Audio Input / Output: RCA 1 / RCA 1
Two Type Video Out: TV Monitor BNC Output and PC Monitor VGA Output
Signal System: NTSC / PAL
Display: 120 fps
Record: 120 fps
Remote Access: Internet Explorer or Net viewer Software
PTZ via RS485 Port
Support Remote View via Smart Phone & 3G Mobile with each of those systems below:
a) iPhone™
b) Blackberry™ OS as of now: V4.7
c) Running Windows Mobile™ Pro 5.0 & 6.1 Operating System
d) Running Symbian Operating System: S60 3rd & S60 5th.
e) Google Android™
Camera Feature
1/4" Color Sony Super HAD CCD Image Sensor
420 TV Lines, Horizontal
3.6mm Lens
IR Irradiation Distance: up to 50' (10m-15m)
Mount: Ceiling or Wall
Video Connector: BNC
Power Connector: RCA 12V DC
12PCS Φ5 IR LED
IP 65
Package Includes
(1) D7824HT DVR System with NO HDD
(4) C7834SC Indoor/Outdoor Security Camera
(4) 60ft X1801BD Video + Power All-in-one Cable
(1) IR Remote Control & Mouse
(1) Power Adapter
(1) Ground wire
(1) 1 to 5 Splitter Cable
(1) User's Manual
